All About Effects Pedals for Bass Guitar (Comprehensive Guide)

March 11, 2024
Effects pedals for bass - Image of a pedal board on stage by Dan Burton

Ever wonder how bass icons, like Doug Whimbish, Juan Alderete, Les Claypool, Bootsy Collins, or Roy Mitchell-Cárdenas get their sound to pop, growl, or whisper in just the right way? Well, it’s not all in the fingers (though they do play a very big part); a lot of that magic comes from effects pedals.

Think of your bass as a blank canvas. Adding effects pedals for bass guitar introduces an entire palette of colors for you to work with.

So, whether you’re looking to add a splash of funk, shake the ground with resonant lows, toss in some hairy peach fuzz to the mix, or paint the air with lush ambient tones, these little boxes (some smaller than a deck of cards) are your ticket to sonic bliss. They’re not just accessories; they’re your partners in musical expression, enabling you to sculpt your sound, your way.

From straightforward single-effect stompboxes to complex multi-effects processors, there’s a whole universe of sound waiting at your feet. For almost a decade, I got lost in this universe, and was constantly amazed by the plethora of musical ideas and basslines a single sound could inspire in me.

Curated from years of my own research, personal trial and error, tips and tricks I learned while I was a performing musician, this is my comprehensive guide.

Let’s get started!

Disclaimer: I’m reader-supported. So, when you buy through links on my site, I may earn an affiliate commission. Having that said, this article does contain affiliate links that I receive a small commission for at no cost to you. You can read my full affiliate disclosure in my privacy policy in the footer.

Only A Few Categories, But The Sonic Capabilities Are Endless

In my experience, there are a few kinds of general buckets or categories that a bass effect pedal (actually effects pedals in general) will typically fall under. Once you understand this, choosing the right effects pedal for getting the sound that you’re after becomes much easier.

The spectrum of effects pedals for bass guitar is vast and the array of sonic capabilities are endless.

Types of Effects Pedals For Bass Guitar

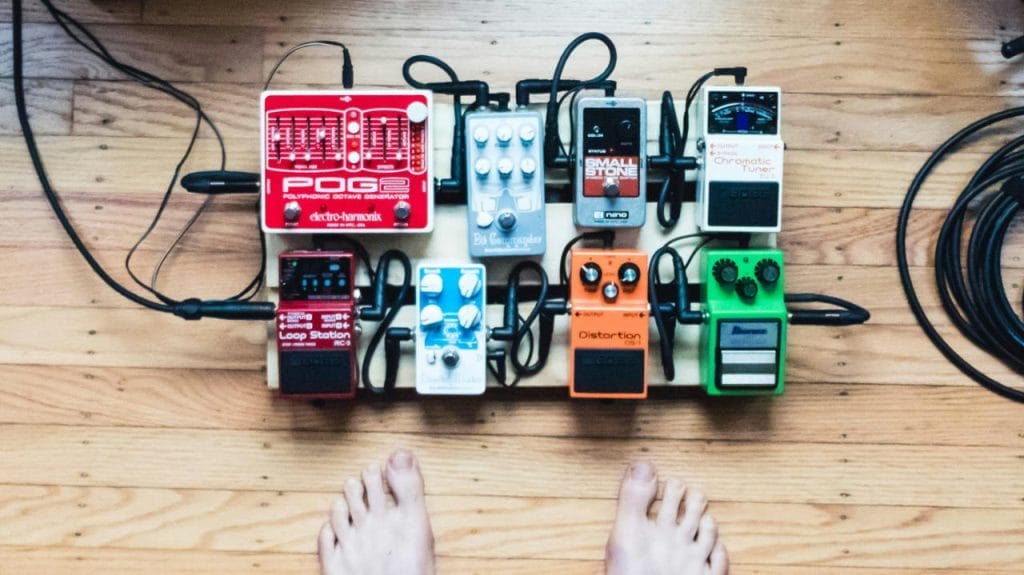

POV of a guitar pedalboard and bare feet by Michael Henry
POV of a guitar pedalboard and bare feet by Michael Henry

Here are the main types of effects pedals you’ll come across:

  • Equalization (EQ) Pedals: These pedals allow you to boost or cut specific frequency bands of your sound. These are super-helpful for getting you to stand out in a mix or to blend smoothly with other instruments in either live performance or studio setting. Some bass preamp pedals, like the Aguilar AG Preamp/Direct Box provide similar tonal shaping functionality as an equalization pedal, except there’s only 4 bands (bass, treble, high-mid, and low-mid) that you’re working with.
  • Dynamics Processors: This category includes compressors and noise gates that manage the volume levels of the bass guitar. Compressors, like the MXR Bass Compressor can even out the dynamic range of the bass, making soft notes louder and loud notes softer, while noise gates can eliminate unwanted background noise from the signal.
  • Modulation Effects: These effects—such as choruses, flangers, pulsers, and phasers—infuse the bass tone with dynamic movement. Personally, I find that modulation effects give basslines a richness, depth, and a sense of motion that feels alive. Usually it’s done in a subtle way. However, there are occasions when it is applied in a bold, unmistakable manner, making a deliberate and impactful statement, like how Juan Alderete did with many of his basslines on The Mars Volta albums. But, the more I listen, the more I discover that many of my favorite basslines benefit from a subtle touch of modulation (particularly a classic bass chorus pedal), enhancing their appeal and complexity.
  • Time-Based Effects: This includes delays and reverbs. These pedals manipulate the time aspect of the sound, creating echoes and spatial effects that can add an ethereal quality to the bass. I also like to think of these effects as additive effects pedals, because they are essentially adding layers to your sound. Roy Mitchell-Cárdenas often used a delay pedal for his bass grooves with MuteMath. When done right, you can create an instant vibe. When done wrong, it just sounds like mud.
  • Harmonic Effects: Pedals like octave devices and harmonizers can add layers of pitch above or below the original note, giving the bass a fuller and more complex sound.
  • Distortion Effects: Overdrive, fuzz, and distortion pedals provide varying degrees of grit and saturation, imbuing the bass with an aggressive edge that can cut through dense mixes.

Of there’s probably more categories, especially if you start going down the road of single-use effects. But, from what I’ve come across, these are the most functional categories.

How Effects Pedals For Bass Guitar Can Enhance Your Musical Expression

I used to be a traditionalist when it came to tone. And the thought of adding any color to the sound of the bass guitar used to make me cringe. But, when I started doing more recording gigs and spending a lot of time in the studio, I noticed that producers would often add an effect to the bass that would change the vibe of the entire song.

For instance, just adding an overdrive pedal can push your bass into a more assertive role within the song. On the other hand, a reverb pedal can simulate different environmental sounds from small rooms to large halls, and create ambiance in ballads or cinematic music.

The classic tune “Don’t Stop Believin'” by Journey uses a chorus effect.

YouTube video
Journey – Don’t Stop Believin’

Furthermore, effects pedals empower you to take on a more prominent creative role. Instead of merely keeping time and providing harmonic support, you can use these tools to introduce rhythmic motifs, lead lines, or textural backdrops to engage your listeners in new ways. When I was performing with singer-songwriter Amanda Lee, I often used the Strymon El Capistan delay pedal with my bass lines to create an ambient effect while maintaining the low-end frequencies of my bass guitar.

Side-note: You can absolutely use guitar effects pedals for your bass guitar. Just keep in mind that many guitar pedals are not aimed to maintain the low-end.

Advantages of Using Effects Pedals for Your Bass Guitar

Effects pedals can dramatically expand the sonic possibilities for your bass grooves and compositions. Just a single new sound can spark a wealth of creative ideas. So if you’re ever wondering, if you should ever use pedals with your bass guitar, I encourage you to go for it! You really don’t have anything to lose and potentially a great deal to gain in terms of ideas and inspiration.

Here are 3 pluses that I’ve found effects pedals to give:

  • Versatility with your tone: Pedals let you quickly switch between different sounds without the need to change instruments or mess with any of your amp settings. I’m all about convenience and I find versatility to be invaluable in both live performances and studio sessions where multiple styles are often required in a short period of time.
  • Precision with dialing on your desired tone or vibe: With effects pedals, you can have precise control over the tone of your bass guitar. You can dial in just the right amount of effect needed for a particular part of a song, and craft your sound with a high level of detail. This goes hand-in-hand with versatility because for me I’ll often use pedals for a certain effect that I’m going after. In other words, I’m not leaving my pedals engaged at a specific setting for an entire gig. For example, if there is a specific funk groove that requires a specific eq for slap bass, then this is where a pedal can provide that precision on the fly.
  • Creativity with your songwriting: As with any effects pedal, you’re really only limited by your imagination. The variety of available effects out there simply invites experimentation and it’s easy to go down a rabbit hole of watching YouTube demo videos. Just stumbling upon a unique sound while tweaking an envelope filter, that can lead to the creation of a new song or part.

Now that you have a better idea of some the types of effects pedals that are out there and how they can level-up your sound and expression, let’s dig into some of the foundations for setting up your signal chain.

Bass Effects Pedal Signal Chain (Basic Anatomy and My Personal Take On It)

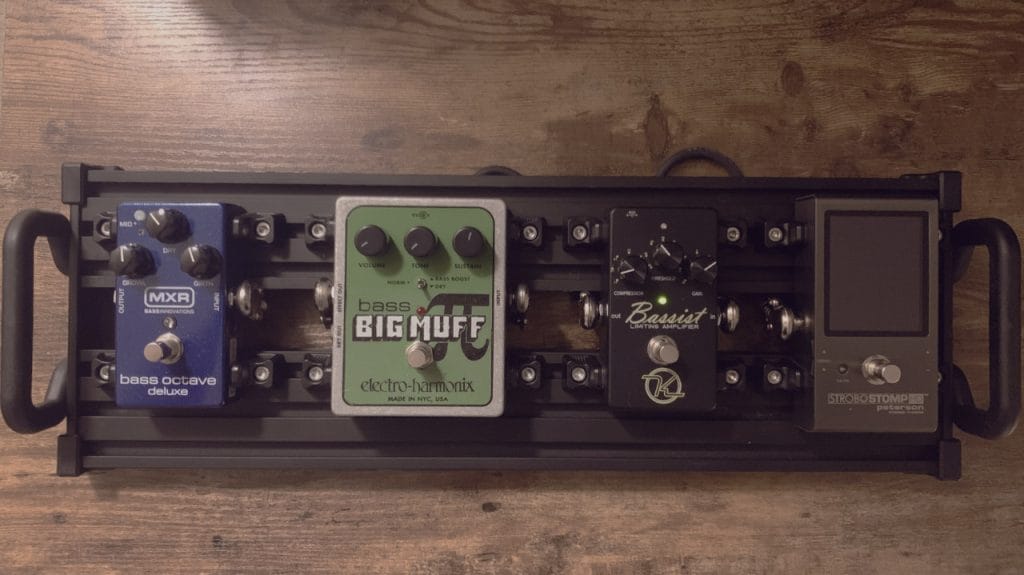

Small Pedalboard Setup for Bass Guitar
Small Pedalboard Setup for Bass Guitar

There are many schools of thought when it comes to setting up your signal chain for your effects pedals. And there really isn’t a right or wrong way, as long as you’re able to achieve the sound that you’re going after. Having that said, certain sounds are more easily achieved by placing certain pedals in a certain order.

Keep in mind, figuring out your signal chain requires a lot of experimentation. Changing the order of just one of your pedals can drastically influence the tone and response of your effects, which can create an entirely unexpected sound that you might actually like! So explore and don’t be afraid to try different orders.

Easy Way To Understand Signal Flow and Order

When I’m talking about “signal chain” I’m specifically talking about the order of your pedals starting from your instrument, through the pedalboard, then finally to your amplifier. You can even take this chain further and include the journey to the speaker or monitor.

To get a better idea of what a signal chain is, here are some examples:

  • Instrument -> Amplifier
  • Instrument -> Direct Box (DI) -> Amplifier
  • Instrument -> Preamp -> Amplifier
  • Instrument -> Preamp -> Pedal 1 -> Pedal 2 -> Pedal 3 -> Amplifier
  • Instrument -> Pedal 1 -> Pedal 2 -> Pedal 3 -> Amplifier
  • Instrument -> Pedal 1 -> Pedal 2 -> Pedal 3 -> Direct Box (DI) -> Amplifier

So, at its most basic, a signal chain begins at your bass guitar, then travels through whatever is in between your instrument and whatever is producing the actual sound, like a speaker or your bass amp. That “in between” part is where effects pedals are often placed and what can drastically alter the sound of your bass guitar.

A Tried and True Approach To Pedal Order (I still typically start here before switching things around)

I’ve often seen bass players setup the order of their signal chain based on specific type of effects. The order I’ll show below is the exact order I start out with when setting up my bass pedalboard. This is my foundation and I’ll usually play with this setup for a while, trying to get different sounds, before I switch around the order.

When I feel like I need or want to switch the order of a pedal, I only change the order of one of the pedals at a time, experimenting in between each switch. The reason I only switch one pedal at a time, is that changing the order of a single pedal alone can have a drastic effect. By having a systematic approach, you’ll know exactly what made your sound the way it is and you’ll be able to recreate that sound more easily in the future.

Here is a tried and true order that I recommend you start out with for your bass guitar pedals:

  1. Dynamics, EQ, Filters, and Pitch Shifters: Anything that compresses your sound (bass compressor pedal), changes the EQ, filters your sound (bass envelope filter), or changes the pitch of your bass guitar typically come first. The logic is that you want to process a clean signal from your bass before your signal hits other effects.
  2. Drive Pedals: Next usually comes the overdrive, distortion, and fuzz pedals (like the Deluxe Bass Big Muff Pi). Positioning these after the dynamics pedals ensures that they drive a signal that is already compressed, preventing volume spikes and creating a more consistent distortion or overdrive effect. Currently, on my pedalboard, I’ve been exploring having a limiter pedal just before my fuzz pedal.
  3. Modulation Pedals: Chorus, flangers, and phase shifters come after drive pedals because modulation often sounds clearer when applied to a signal that’s already been shaped by dynamics and drive effects.
  4. Time-Based Effects: Finally, delay and reverb pedals are traditionally placed at the end of the chain. They take the entire processed signal and add repeats or reverb, which would become muddled if placed before modulation or drive effects.

To sum things up on a very basic level: Shape your tone before adding any “dirt.” And if you want to apply any additive types of pedals (anything that will add layers to your sound), then do that last.

Frequently Asked Questions

Where do you put an octave pedal in the signal chain?

Here’s my take on this. Octave pedals are unique type of bass pedal. Typically, octave pedals are used for doubling your signal either an octave above or lower than your original signal. Many octave pedals have a knob for mixing your original bass sound with the higher or lower octave bass sound. You’ll hear this sound a lot in a lot of funk bass lines. While this type of pedal is typically used in an additive way, I personally like the sound of a bass octave pedal when it’s placed early in the signal chain, right after a compressor or right after a classic bass fuzz pedal to create a deep synth bass sound. Bass frequencies are easy to muddy up. Since an octave pedal is like having two of the same basslines playing at the same time, I prefer to send a clean signal to an octave pedal.

How do compressor pedals work?

Compression is often one of the most misunderstood effects, especially among newbies to the world of bass guitar effects. However, experienced bassists know that a good compression pedal is like the secret sauce that brings consistency, punch, and professionalism to their sound. Here’s my take on this. The role of a compressor pedal, like the MXR M87 Bass Compressor, is to narrow the dynamic range of your bass playing. In other words, soft notes become more audible and loud notes are prevented from overpowering.

Here’s a few basic explanations for knobs you might find on a bass compressor pedal:

Attack: This is how fast you want the compressor to kick in.

Ratio: This is how much compression you want. The higher the ratio, the more compression.

Threshold: This is what you want the compression to compress. In other words, it’s the level that you set to determine what will engage the compression.

Release: This is when you want the compression to disengage or stop working.

What is the best way to power multiple effects pedals?

To power multiple effects pedals, you can use either individual power supplies, daisy chains, or power bricks. But, here’s my personal take on this, and I know this is probably not the most popular approach. I personally power all my pedals (if they have this ability) with a battery. While powering individual guitar and bass pedals with its own battery can be expensive, I find that you eliminate most if not all of your buzz and humming problems from power cables interfering with one another.

But, if you really don’t like the idea of using batteries, then the next best thing is to use a power brick with isolated outputs for each pedal. Isolated outputs minimizes noise and ensures consistent power delivery. Now, this is important, some pedals have specific power requirements, so you’ll need to make sure your power brick is able to accommodate.

How do I prevent signal loss when using many pedals?

To prevent signal loss when using multiple pedals, consider the following steps:

Keep your pedals to the bare minimum. If you have a lot of unnecessary pedals that are “true bypass” you’ll find that your signal will sound weak AF. Personally, I like to leave my tuner out of the signal chain. It’s one less pedal to the length of my signal chain.

Use high-quality, short cables to connect your pedals. Yes. Invest in good cables. I spent much of my early years using cheap cables. Then, during a studio session, the engineer had me use a high end cable. My ears knew right then and there that I had been missing out. I’ve never gone back to using cheap cables.

Ensure that all your pedals are properly powered, preferably battery (if the pedal has this option).

Regularly check connections and cables for any signs of wear or damage. You might not ever have this problem. But it still doesn’t hurt to check.-

Are there specific pedals that are better suited for active basses versus passive basses?

Active basses have a built-in preamp which can sometimes overload the input of certain pedals. For active basses, it’s best to use pedals that have an input level control to avoid clipping. Passive basses, on the other hand, can generally use a wider range of pedals without issue. Some pedals are specifically designed with an active/passive switch to accommodate both types of basses. Personally, all of my basses are passive. I even leave my Fender Ultra Jazz bass without any batteries and just switch the pickups to passive. In my opinion, passive basses are the right bass to use when adding effects pedals.

Can I use guitar pedals for my bass?

Yes, you can absolutely use guitar pedals for your bass, but take note: Some guitar pedals aren’t specifically designed for bass and can’t handle the lower frequencies of the bass. So, you may experience a loss of bottom end. But… don’t let this hold you back from experiencing some really cool sounds!

How do I decide between analog and digital pedals?

Analog pedals are known for their warmth and simplicity, often providing a more natural and straightforward effect. Digital pedals offer more versatility and precision, with the ability to store presets and provide a wider range of sounds. Your choice between analog and digital should depend on your tonal preferences, the complexity of effects you desire, and whether you value the organic sound of analog over the versatility of digital.

What is “true bypass” and is it always preferable?

True bypass is a type of circuitry in pedals that allows the signal to pass through without any interference when the pedal is off (meaning without any effects). While it preserves signal integrity, it is not always preferable as it can lead to high-frequency loss with long cable runs. To accommodate for the signal loss, a buffered bypass can help maintain signal strength across the entire signal chain.

Now It’s Your Turn

There’s no one-size-fits-all approach to effects. It’s all about finding the sounds that inspire you and fit either your musical expression or what the song needs.

Having that said, I hope that the insights I shared above help guide you on your journey to fx pedals. Stay patient and you’ll gain the mastery that you need of each pedal by understanding its character and learning how to manipulate it expressively in context. So experiment and keep experimenting.

Embrace the journey of discovery, let your curiosity guide you, and allow the pedals to become extensions of your creative voice. With these tools at your disposal, the possibilities are as expansive as the spectrum of music itself. Seek out the pedals that resonate with your artistic vision, and craft a sound that is undeniably and uniquely yours.

If you want to learn more about playing the bass, click here.
